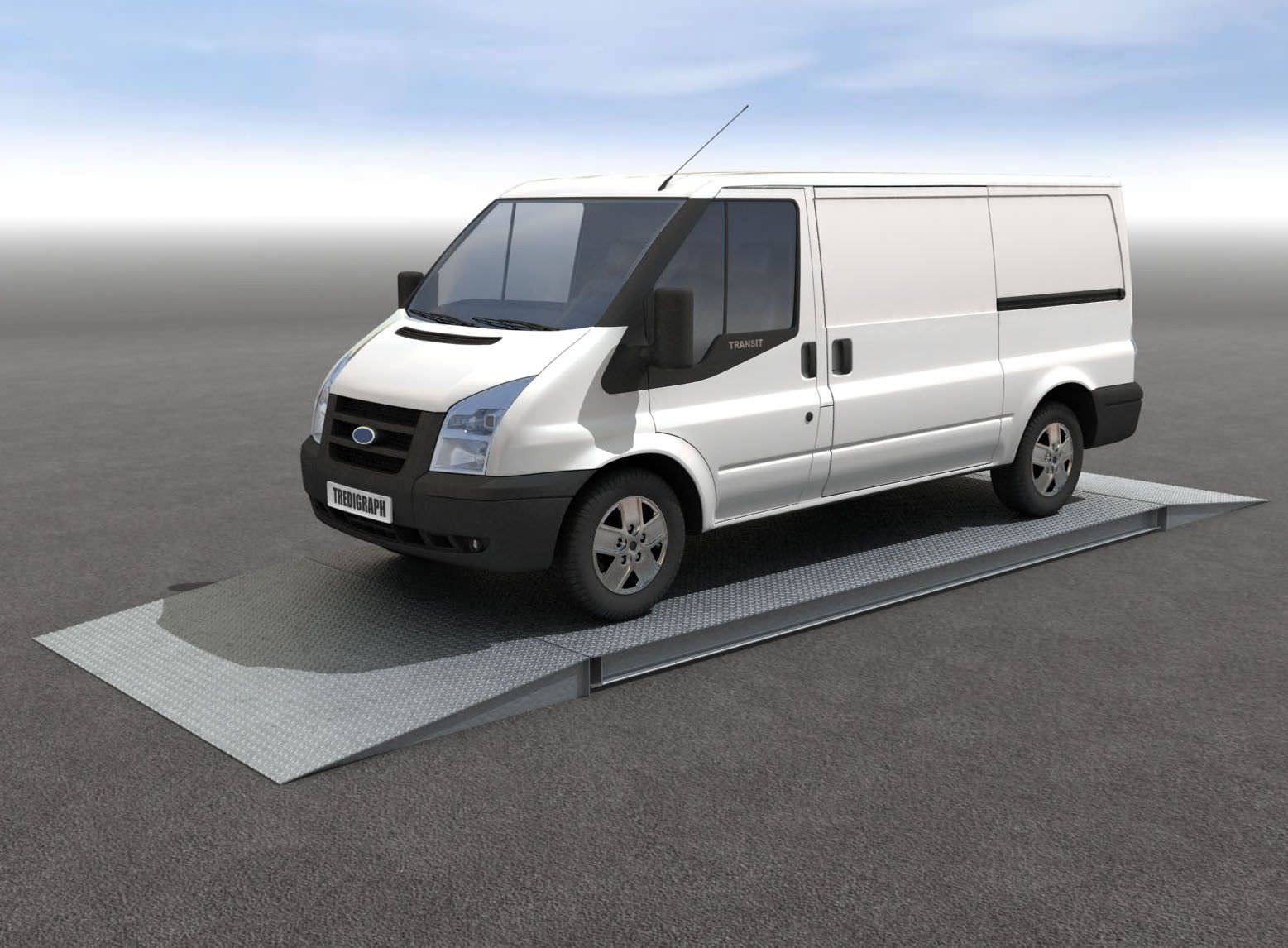

Explosion-proof Electronic scales with patented utility model technology for weighing applications in environments with explosive gases or explosive dusts. Explosion-proof electronic scales use isolation, voltage reduction, current limitation, sealing and fiber optic communication technologies to eliminate or isolate the links in the system that may generate sources of explosion (electrical short-circuit sparks, electrostatic friction sparks, high-temperature energy concentration, etc.), so as to achieve the purpose of electronic scales for use in environments with explosive hazards. Carbon steel structure, electronic scales with optional ramp and stainless steel weighing pan. It can be fitted with a remote display, connected to a computer or with a printer to print the data (for use in non-explosion-proof areas).

Explosion-proof electronic scales realized by means of explosion-proof Weighing modules and explosion-proof weighing instruments, with constant value and ratio functions, which can be directly used for the process control of the production of the dosage. According to the standard signal inputted into the weighing module, it realizes weighing measurement, automatic control, data statistics and uploading; according to the operating environment and actual requirements, it sets the minimum credible weight, if the proportioning material is less than the minimum set value, the weighing instrument will alarm on the display that the value obtained is not within the set range. The weighing instrument is also equipped with an RJ45 Ethernet port, which allows access to the upper control system. The operator in the control room can monitor the weighing data, adjust the settings, generate reports, backup or restore the data through the control system, which is a complete solution for the realization of the measurement and control of the weight in a single unit. With the promotion of weight measurement and its successful application in other industries, we proposed a control program for weight measurement, which was adopted after many discussions with the process side and a comparison of the investment of the two programs. A complete weighing monitoring system is formed from parameter acquisition to process control.

Weighing range: 1T-0.2kg, 1.5T-0.5kg, 2T-0.5kg, 3T-1kg, 5T-1kg, 10T-2kg.

Weighing platform size: 1.2m×1.2m ,1.2m×1.5m, 1.2m×2m , 1m×1.5m, 1.5m×2m ,2m×2m
