The weighing filling machine adopts contactless detection control. The contactless detection and control device applies differential transformers, photosensitive components and electronic device detection sensors to detect and control the pre-determined weighing program of the weighing system, obtaining corresponding signals. After being amplified by the electronic device, it automatically controls the actuator to perform weighing work according to the required program.

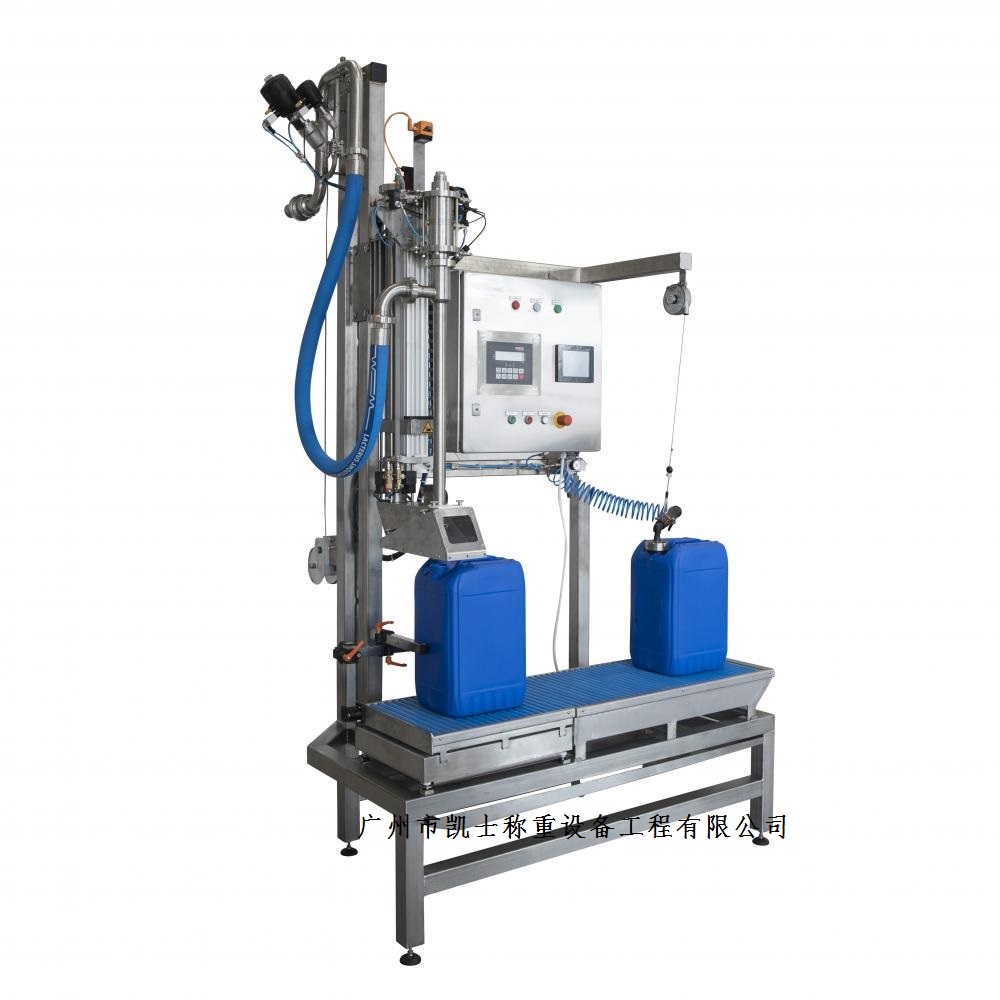

020-34563445When the Liquid filling machine is in operation, when the conveying equipment delivers the finished material, the oscillators of scale A and Scale B start to swing, and the oscillator baffle opens. When the maximum feeding weight is reached, the baffle closes and the small oscillation feeding begins. When the preset weight is reached, the feeding stops, the scale hopper opens, and the material is discharged through the transition hopper before falling back into the bucket, completing one packaging cycle.
The weighing control device adopts contactless detection control. The contactless detection and control device applies differential transformers, photosensitive components and electronic device detection sensors to detect and control the pre-determined weighing program of the Weighing system, obtaining corresponding signals. After being amplified by the electronic device, it automatically controls the actuator to perform weighing work according to the required program.
Technical parameters
Weight range: 10 to 60kg
Material interface: DN40 material
Inlet pressure < 0.6MPa
Filling speed: 1 to 2 barrels (20L)/ minute (diameter 1.5 ", material flow rate guaranteed at 280L/min)
Filling accuracy :0.2 grade
The structure of the spray gun: The materials of the parts in contact with materials are 316 and 316L stainless steel, while the materials of the rest of the parts are 304 stainless steel, carbon steel, etc
Air source used: Pressure 0.5±0.1Mp, consumption 10m ³ /h, quick connector 8 mm air pipe
Power supply: 220(-15% to +10%)VAC, 50Hz
